All Flange Tee Ductile Iron FIttings Cement Mortar Lined With Radial Branch

Product Categories
Henan Wein Industry Co., Ltd.
Contact Now

All Flange Tee Ductile Iron FIttings Cement Mortar Lined With Radial Branch

  • 1
  • 2
  • 3

Brand Name : NO

Model Number : DN80 to DN600

Certification : NO

Place of Origin : China

MOQ : 10 pcs

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : one container per half month

Delivery Time : 20 to 60 days

Packaging Details : Package in wooden cases

Material : Iron

Connection : Flange

Standard : EN545

Pressure : PN16

Colour : Blue

Gasket : NBR

Contact Now

All Flange Tee Ductile Iron FIttings Cement Mortar Lined With Radial Branch



All-flanged tee with Radial branch

Material Ductile iron
Type TEE
Rate pressure PN16
Internal coating Cement mortar lining
External coating Zinc/Zinc alloy, bitumen,epoxy
Standards ISO2531, BS EN545, BS EN598, GB/T13295
Accessories NBR, SBR, EPDM rings according to ISO4633

All Flange Tee Ductile Iron FIttings Cement Mortar Lined With Radial Branch

All Flange Tee Ductile Iron FIttings Cement Mortar Lined With Radial Branch

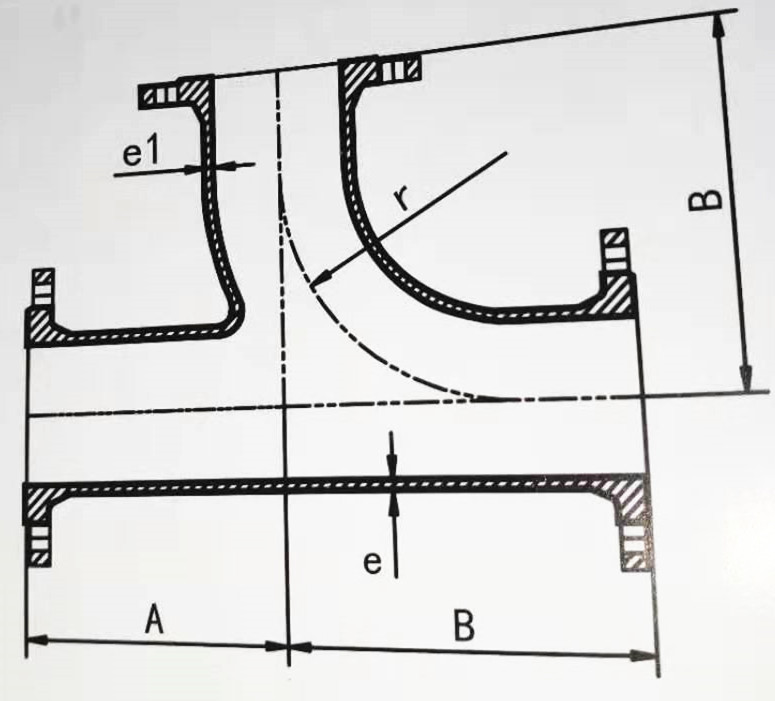

DNXdn e e1 L A B Weight PN16
80X80 8.1 8.1 545 165 330 23
100X100 8.4 8.4 580 180 340 29.5
150X150 9.1 9.1 670 220 385 47.9
200X200 9.8 9.8 760 260 430 71.6
250X250 10.5 10.5 900 350 475 104.8
300X300 11.2 11.2 1000 400 515 144.5
350X350 11.9 11.9 1100 450 560 203.4
400X400 12.6 12.6 1200 500 605 263.1
450 X 450 13.3 13.3 1300 550 650 332
500X500 14 14 1400 600 690 421.9
600X600 15.4 15.4 1500 700 780 623.7



Packaging Details



(1). We will pack your items by carton or plywood cases for exporting standard.
(2). We can also pack your items according to your requirements.
